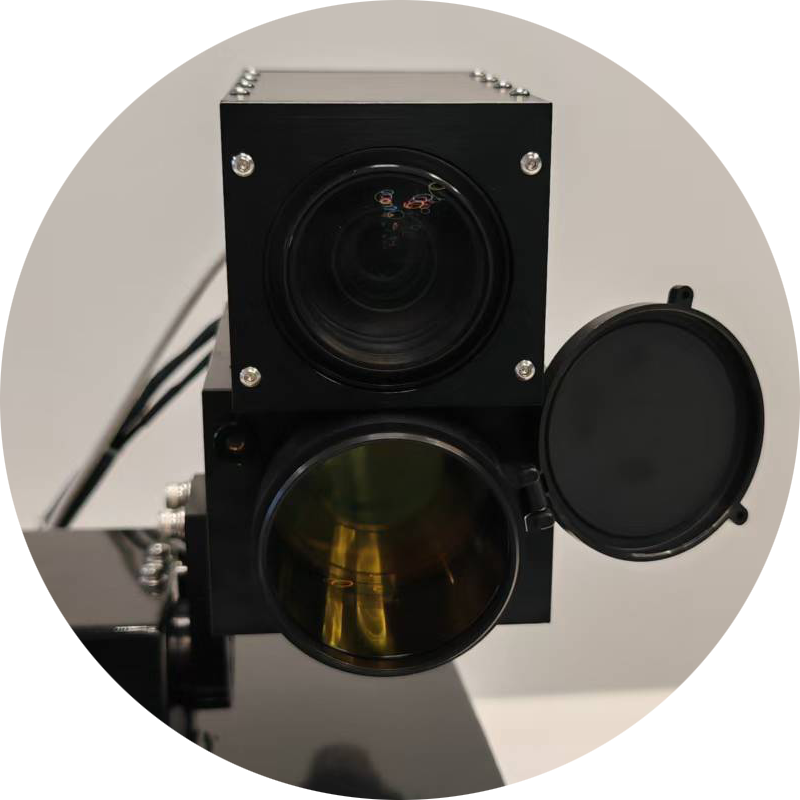

CL500系列
技术参数：
适功率 <=3000W
适用波长 1060-1090nm
通光孔径 65mm
清障距离 10-500m
聚焦性能（可在10~500m内连续变焦，自动聚焦后光斑大小(mm)如下）：
0.6(@20m);
1.4mm(@50m);
2.8mm(@100m);
5.6mm(@200m);
15mm(@500m);
——————————————————————————————————————————————————
精密电控云台
技术参数：
1）2.4G 2500m 无线遥控
2）360度无限旋转
3）俯仰 -30~+30度
光学变焦高清相机
高清一体机星光低照摄像头机芯
相机分辨率：4088×3027像素（可见光）（订制）
瞄准精度白天100米～200米范围内激光辐照点中心与目标点中心距离：4mm（单次目标平均瞄准时间：5s）；
预留H.264/265数字传输接口
光学放大倍率：40倍
电子放大倍率：5倍
水平视角：60°~2° （远望-广角）
图像传输延时40ms
匹配激光器要求：光束质量M2<=1.2 ;光纤芯径<=20um
可以选配：精密电控云台、光学变焦高清相机、系统开发等
Optional: precision electronically controlled PTZ, optical zoom HD camera, system development, etc.
可选型号/Available Models：
CL150 型 准直光束型/ CL150 Collimated Beam Type
CL500型 风冷自动聚焦型/CL500 Air-Cooled Auto Focus Type
CL6000型 水冷自动聚焦型/CL6000 Water-Cooled Auto Focus Type
激光除障系统/Laser obstacle removal system

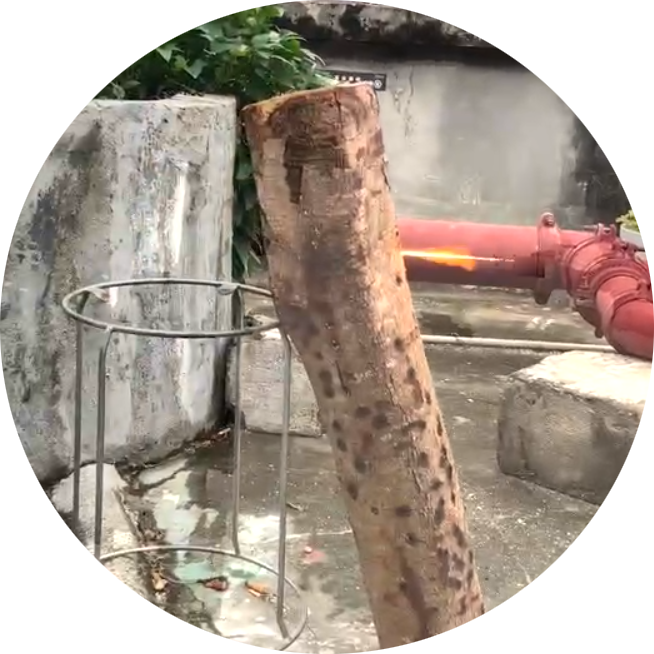

激光通过光学系统能够远距离、无接触地快速清除障碍物。在电力行业中，能够实现带电作业，不仅降低了人员的作业风险，而且提升了输电线路精益化运维，对保障线路安全稳定运行具有重要意义，同时市政领域，消防领域，石化领域激光的除障、破拆、加热等功能也有着极大的行业应用前景。
牛顿光学具有专业的光学设计能力和多年的行业应用经验，可以针对应用场景设计更加专业光学系统和光路结构，以满足最佳的使用需求。
Laser can quickly remove obstacles at a long distance and without contact through an optical system. In the power industry, live working can not only reduce the operating risks of personnel,but also improve the lean operation and maintenance of power transmission lines, which is of great significance to ensure the safe and stable operation of the lines. At the same time, the obstacle removal, demolition, heating and other functions of lasers in the municipal, fire and petrochemical fields also have great industry application prospects.
Newton Optics has professional optical design capabilities and many years of industry application experience. It can design more professional optical systems and optical path structures for application scenarios to meet the best use needs.
常用的光路方案/Commonly Used Optical Path Solutions:
1、单镜组准直光束，结构简单，光斑较大，效率低，但是价格较低，比如我们提供的CL150系列
The single-lens collimated beam has a simple structure, a large light spot, and low efficiency, but it is relatively inexpensive. For example, our CL150 series
2、多镜组自动聚焦光束， 结构复杂，聚焦效果好，效率高，应用更广，比如我们提供的CL500系列，和CL600系列
Multi-lens group automatic focusing beam has a complex structure, good focusing effect, high efficiency, and wider application. For example, we offer the CL500 series and CL600 series
