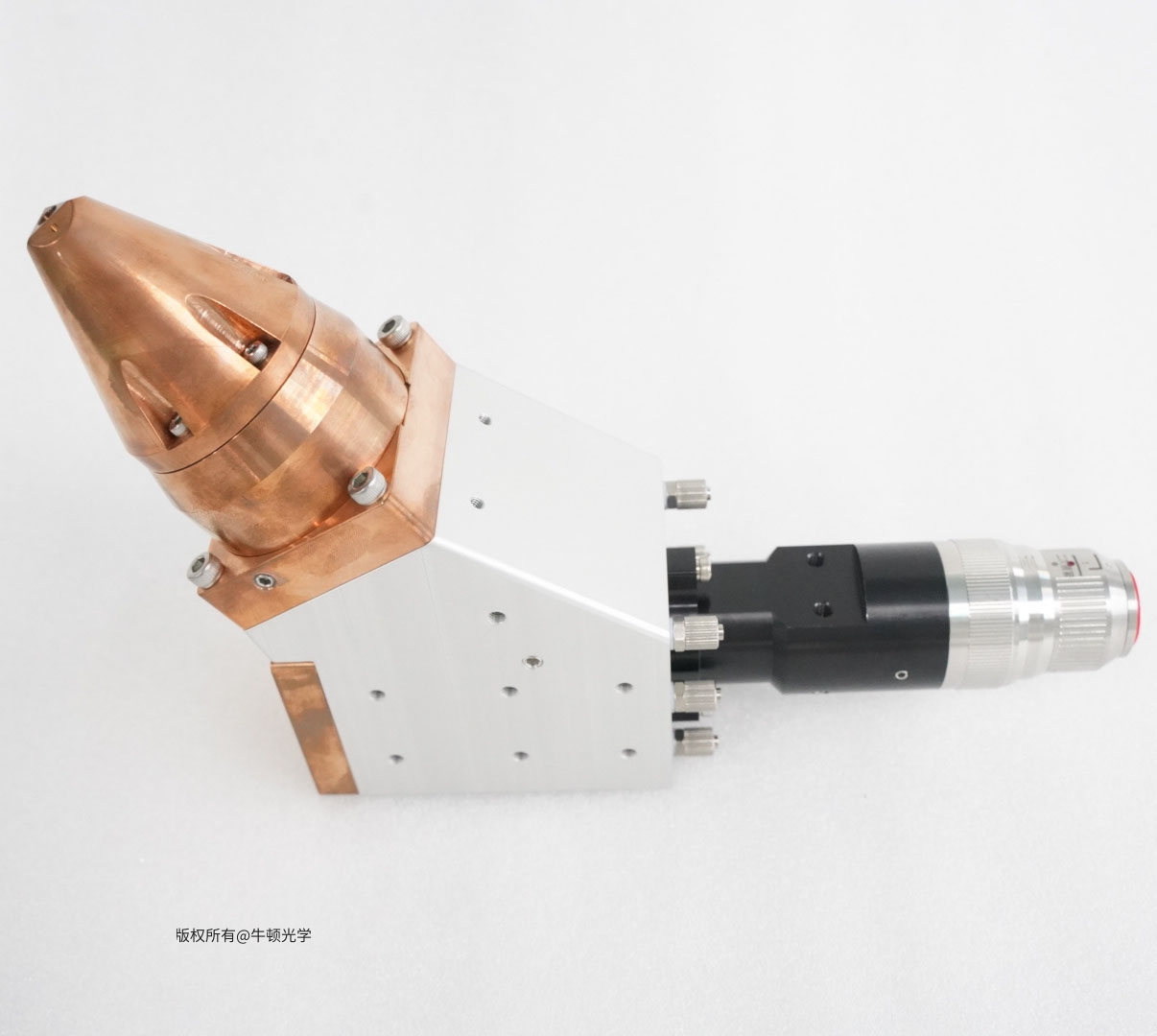

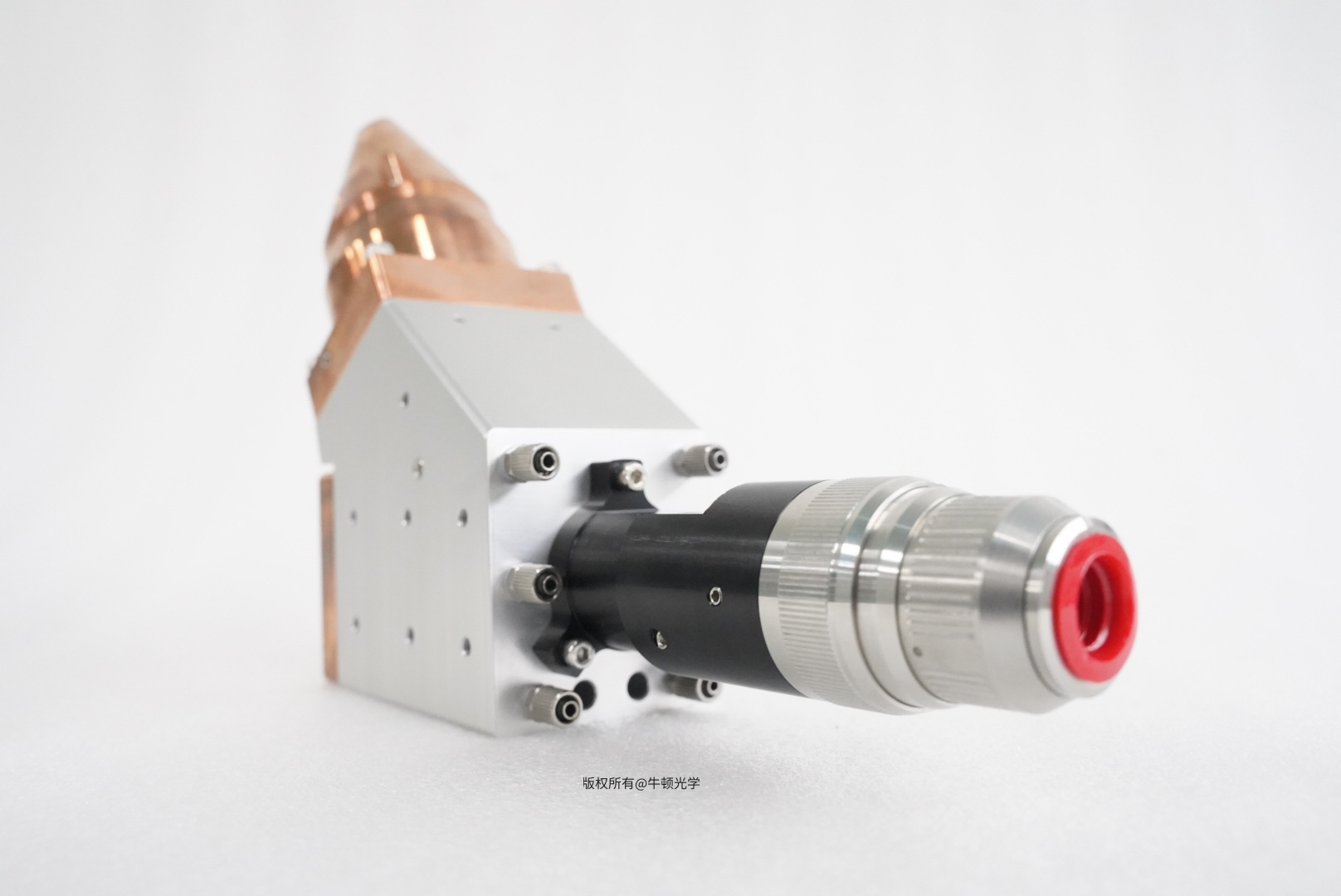

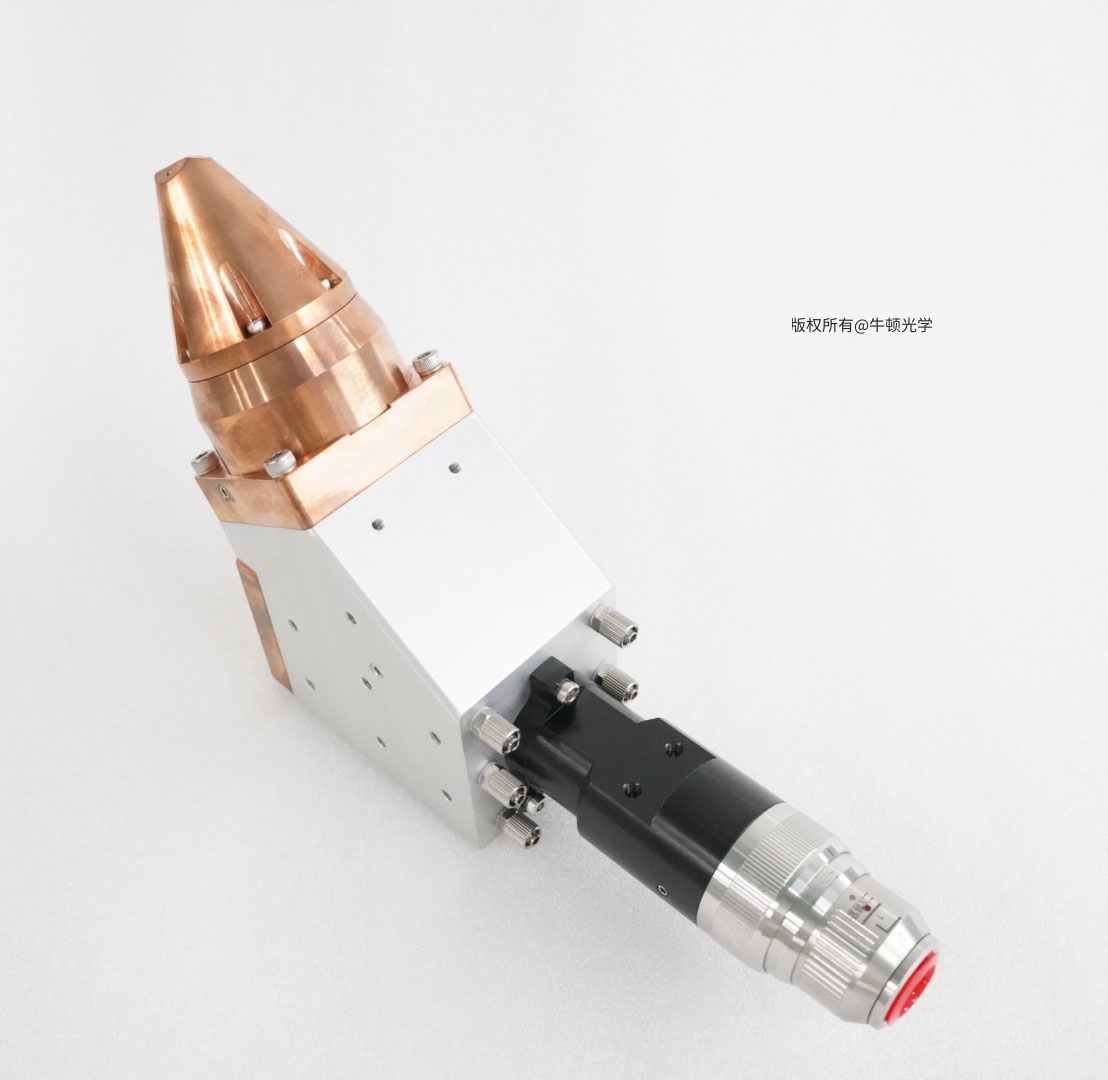

*三束流前倾设计  3 powder exit forward-tilting design

三束流送粉前倾与光束前倾，可以避免盲孔或台阶孔的根部盲区

The triple-beam powder feeding with forward tilt and the beam's forward inclination are designed to eliminate the blind zones at the root of blind holes or stepped holes.

*内置管路设计 Optimized the design of pipeline layout structure

管道内置，与光纤输入同向设计，方便安装及维护

The pipeline is internally integrated, designed to align with the fiber optic input direction, facilitating ease of installation and maintenance.

*防回反光设计 Anti-retroreflective design

内部设计有水冷光阑，可以有效防止回反光，提高光纤的使用寿命

The internal design incorporates a water-cooled aperture stop, which effectively prevents back reflection and enhances the service life of the optical fiber.

技术参数 Technical Data

光纤接口 /Fiber interface                                          QBH  /  LOE  / QD

准直系统 / Collimation length                                    D30F100

聚焦系统  /Focusing length                                       D30F250

粉          距  /Powder distance                                  15mm

推荐光纤芯径 /Prefered fiber core diamete                 600um

最小内孔直径 /Min.ID diameter                                 > 197mm

重  量 /Weight                                                        4.8Kg
